ThaiRIS Radiology Information System OpenSource

Radiology Information System

OpenSource Radiology Information System

100% Web application

Radiology information system (RIS) is a networked for managing workflow and patient data in Radiology department, RIS is especially useful for managing radiological records and associated data in a multiple locations and is often used in conjunction with a picture archiving and communication system (PACS) to manage work flow and billing.

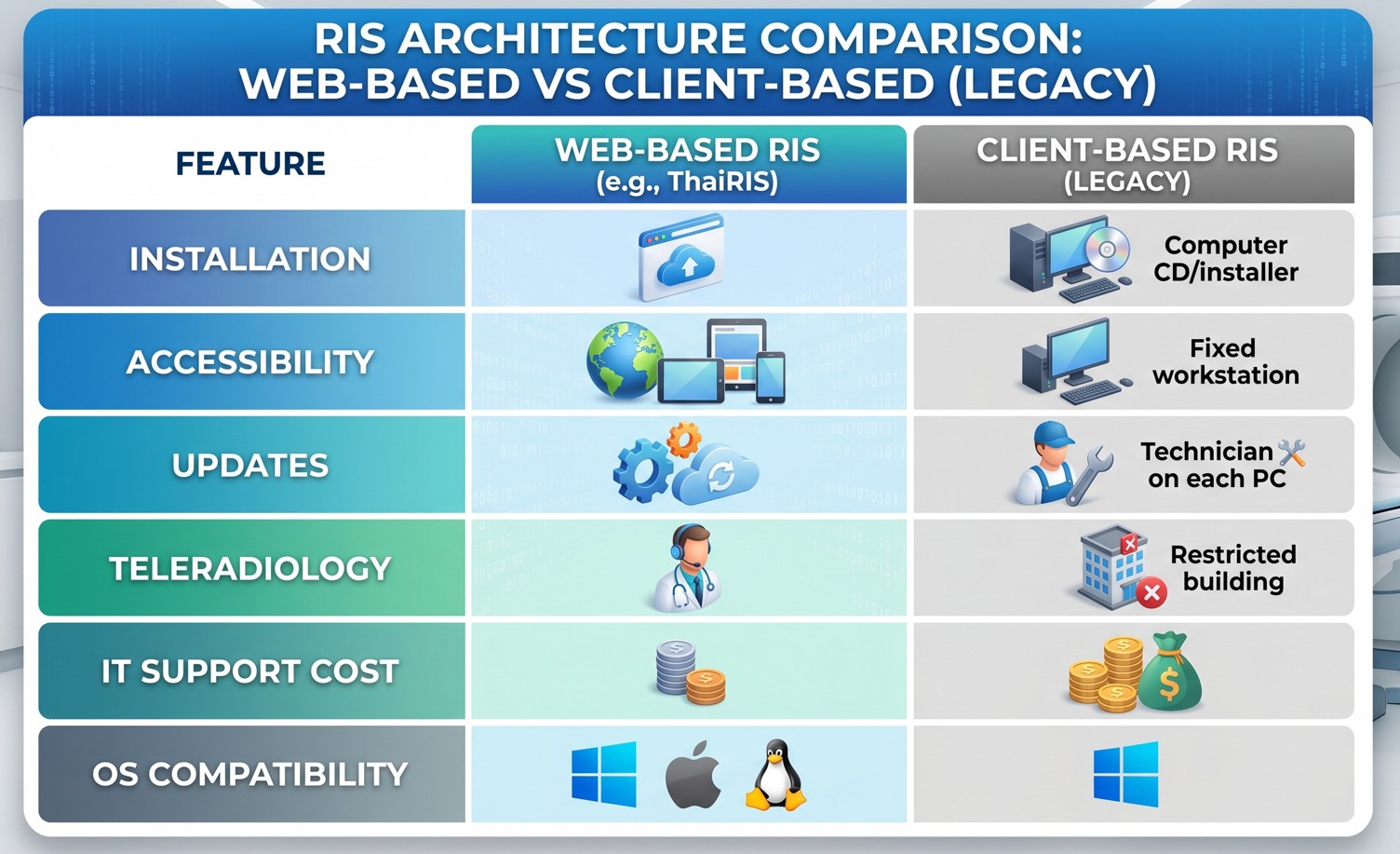

ThaiRIS : This program is a Web base application can be run through a Web browser anywhere and supports Radiology WorkFlow, ThaiRIS can be adjusted to suit the individual hospital. ThaiRIS can used as Tele Radiology for reporting See ThaiRIS Workflow

Integrated Viewer Weasis, RadiAnt, OHIF And More.. ThaiRIS3.0 Comming soon

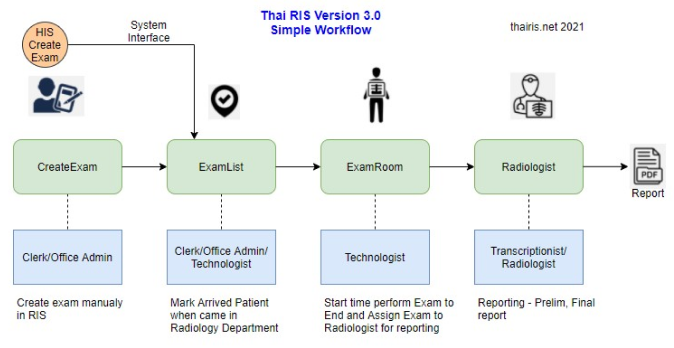

RIS Simple Workflow

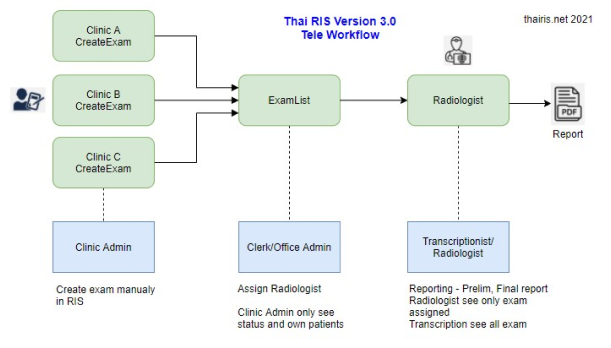

RIS TELE Radiologdy Workflow
Cloud RIS Service

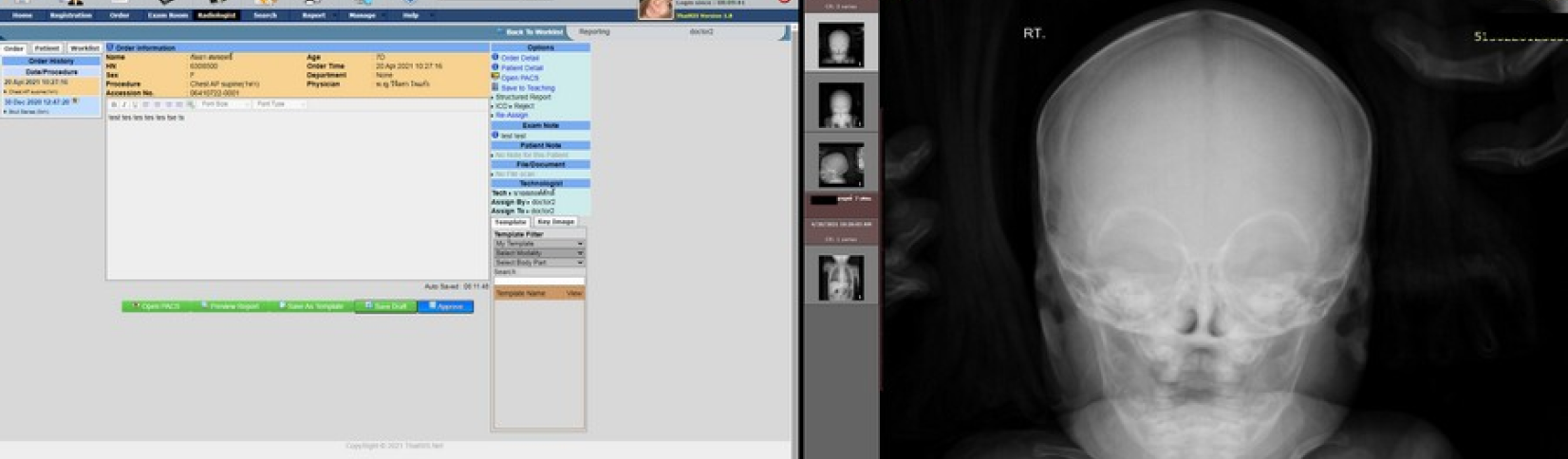

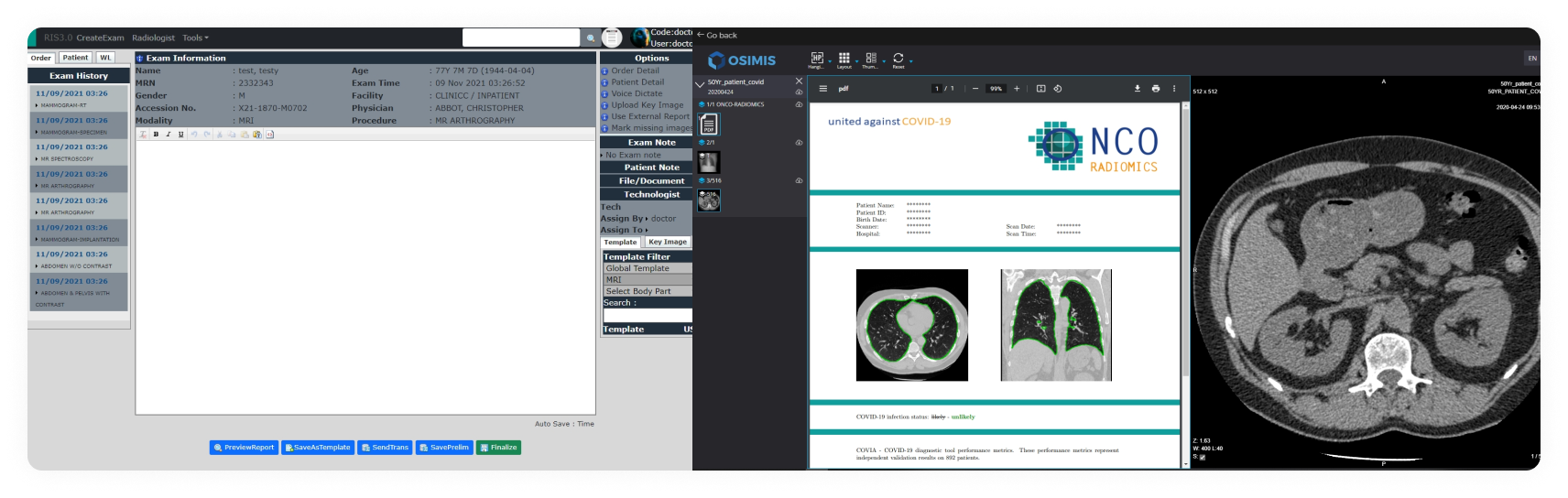

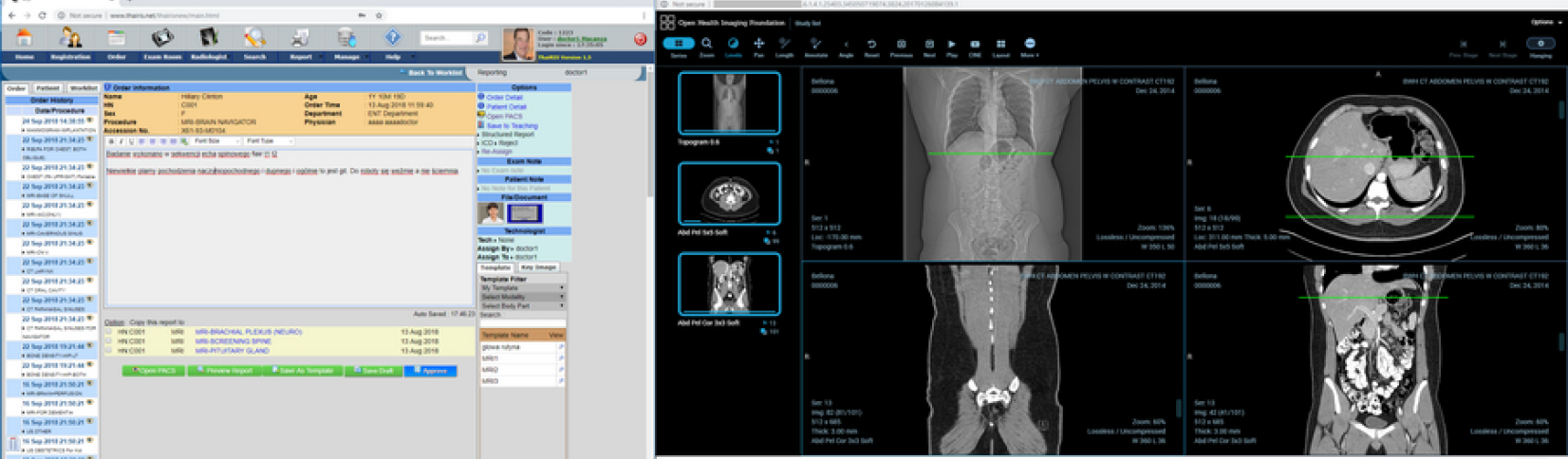

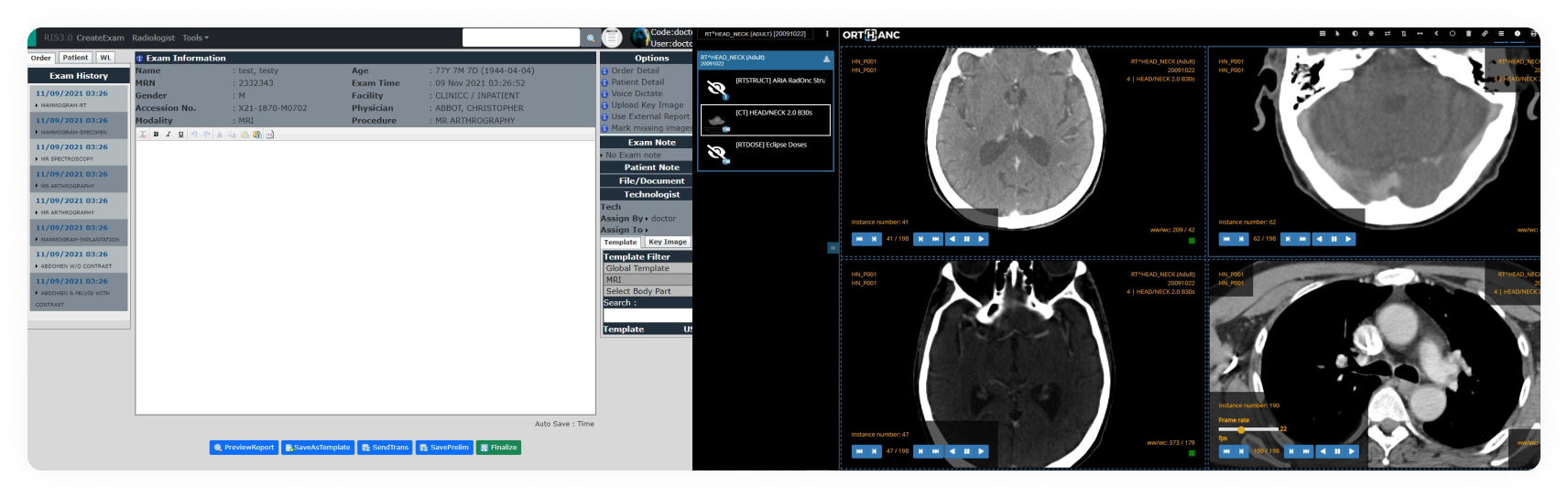

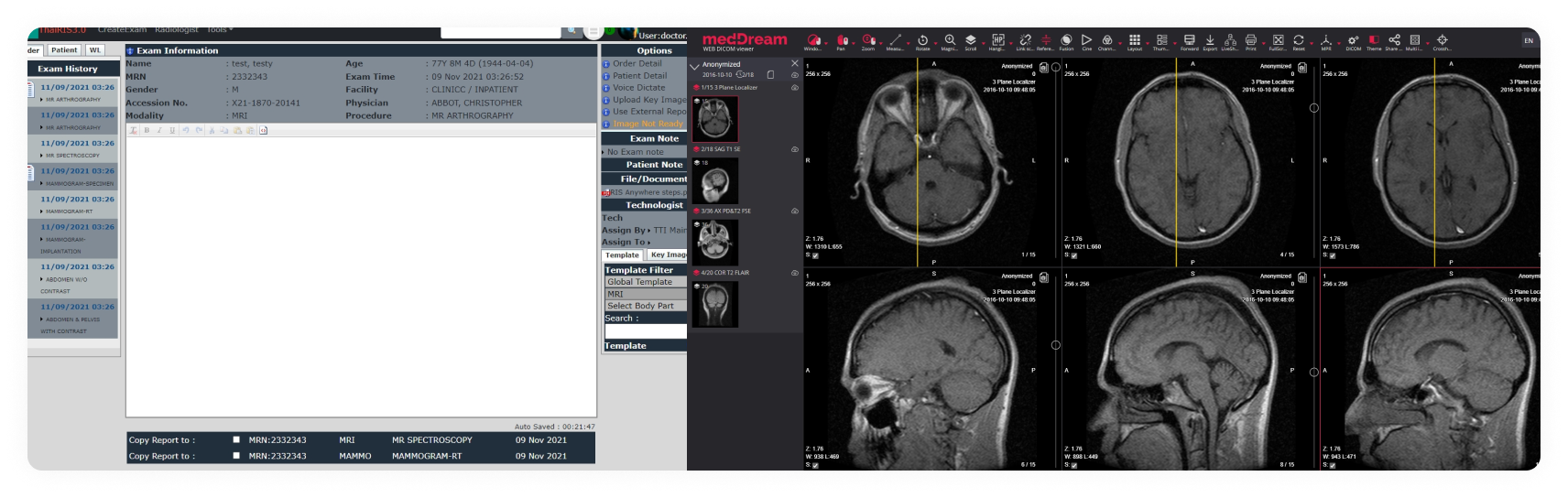

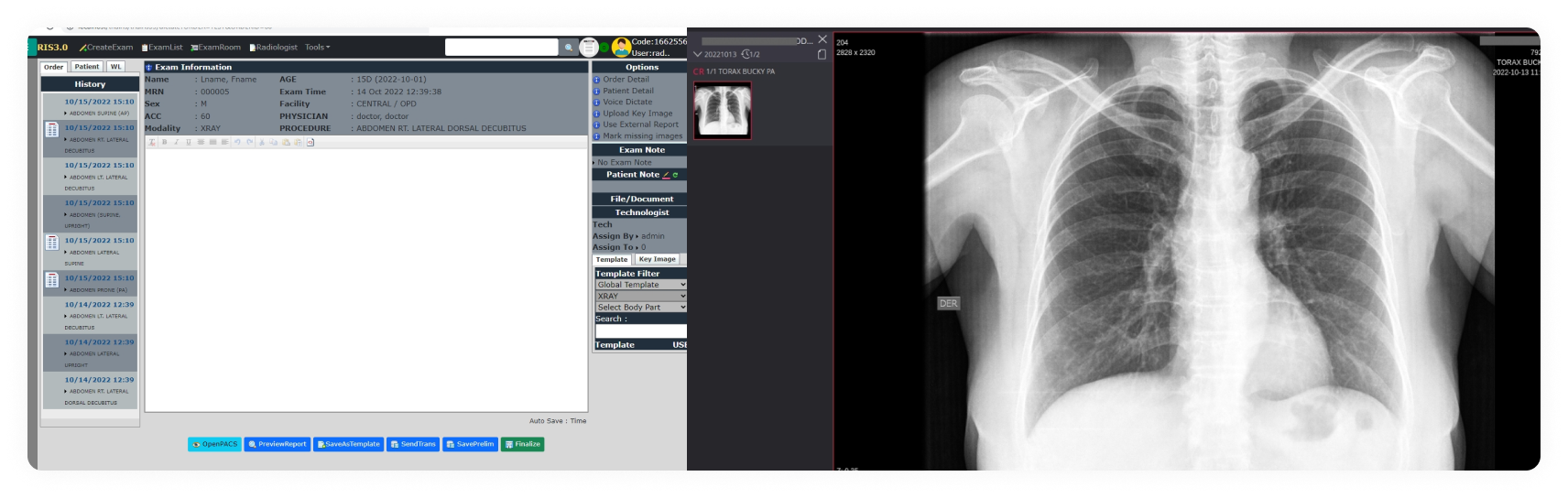

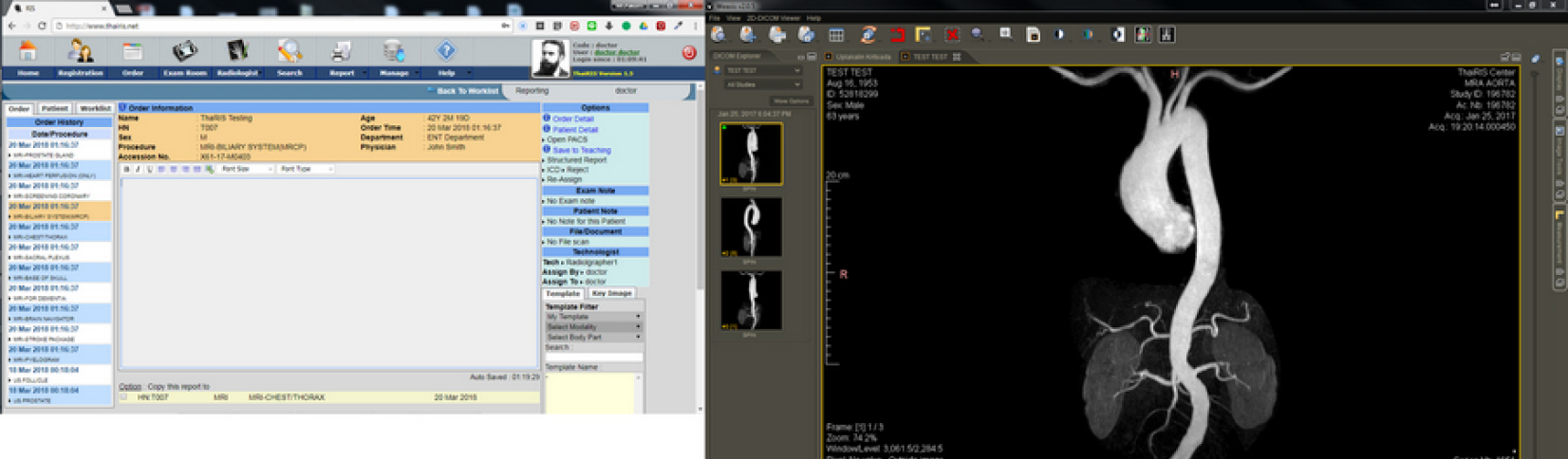

ThaiRIS 1.x connected with PACS via web Interface Weasis Dicom Viewer Ohif.Org Radiatn Dicom Viewer https://www.orthanc-server.com/ https://www.osimis.io/en/osimis-portal MedDream

Feature

Version 1.0

Version 1.8

Version 3.0 Source Code Only

Version 3.0 Source code + Service

Basic Workflow (Order, Exam ,Report)
Yes

Yes

Yes

Yes

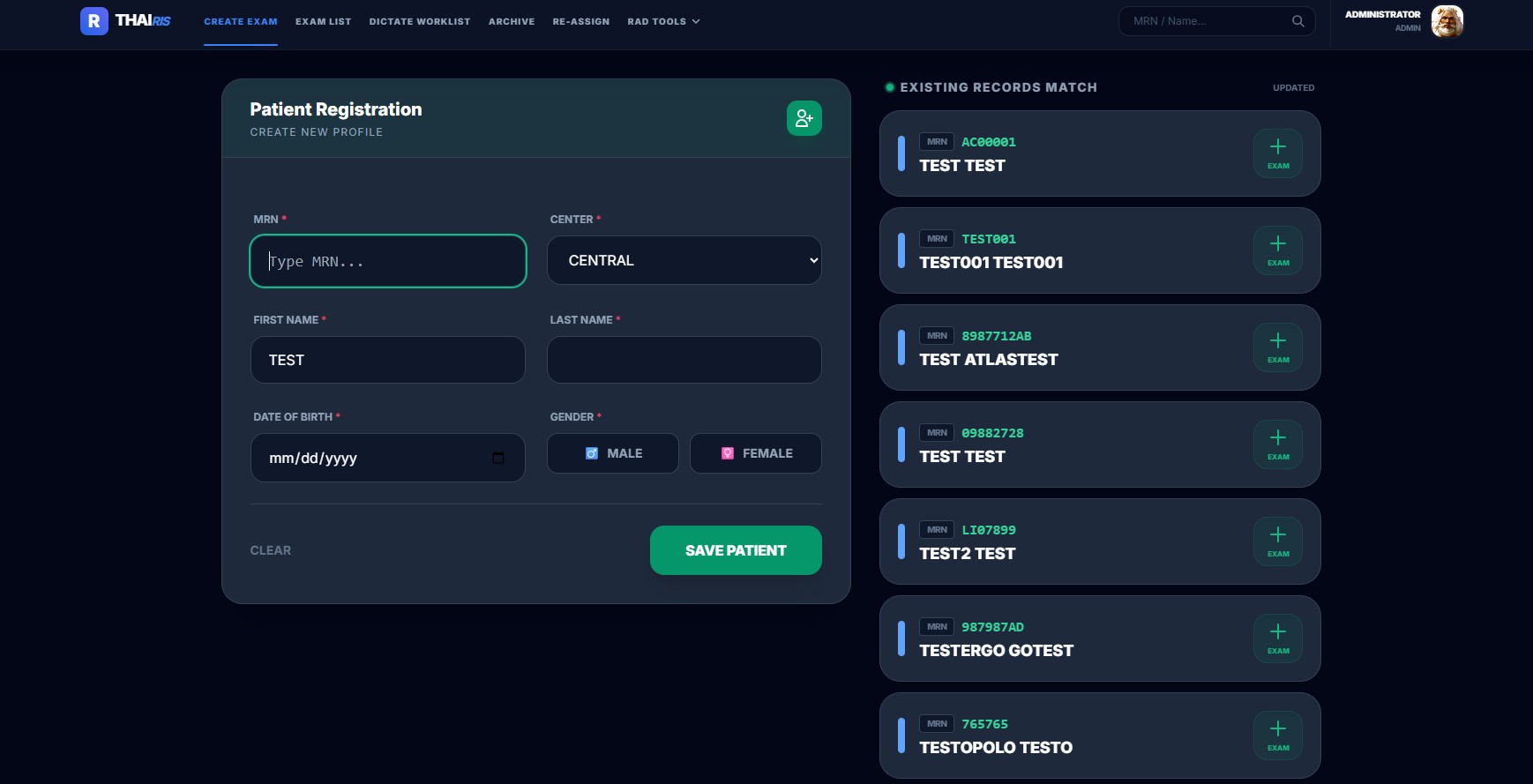

Manual Registration
Yes

Yes

Yes

Yes

Edit Procedure
-

Yes

Yes

Yes

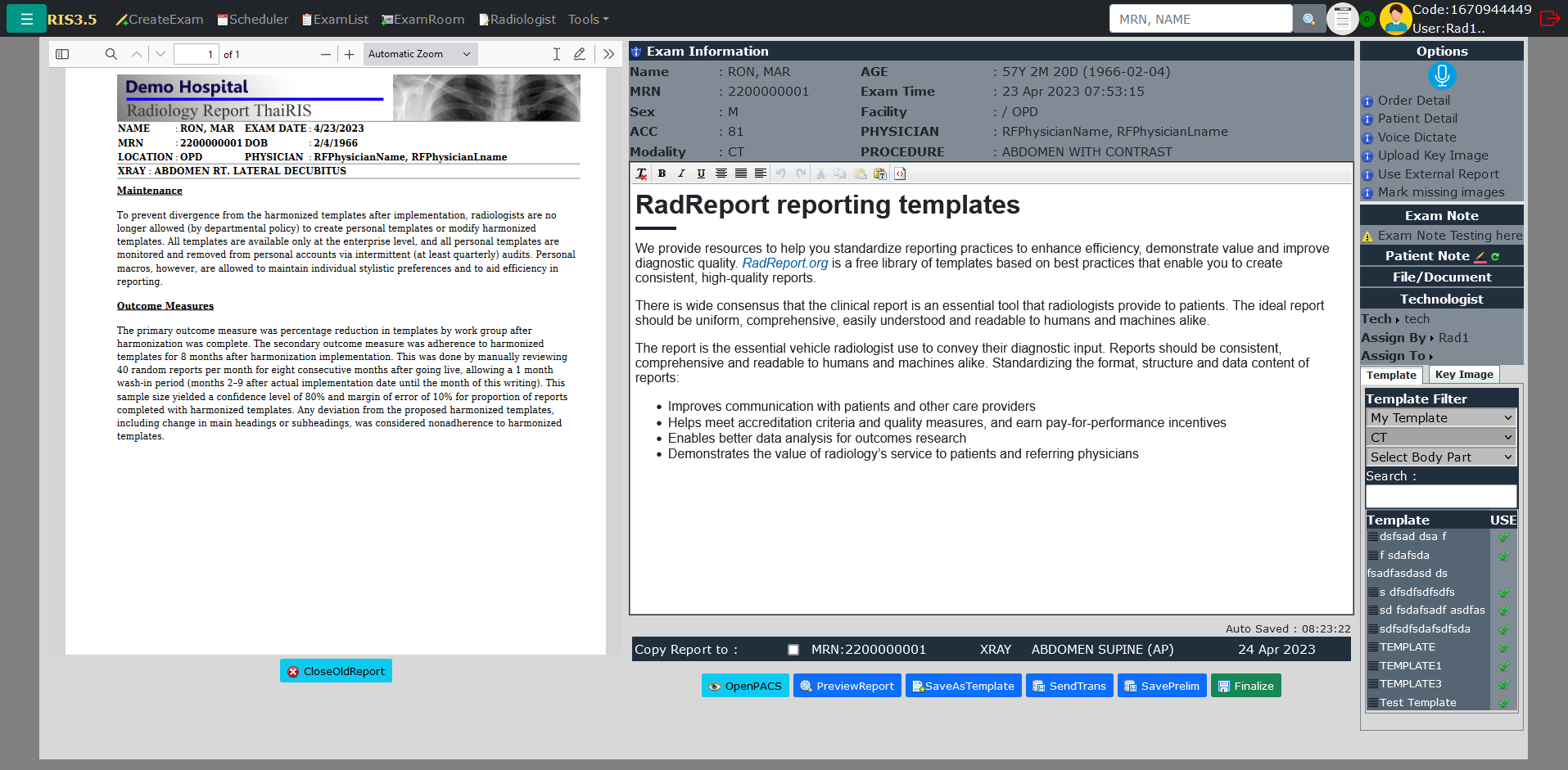

Template Report
Yes

Yes

Yes

Yes

Addendum Report
Yes

Yes

Yes

Yes

Edit Report
-

Yes

Yes

Yes

Preview Report
Yes

Yes

Yes

Yes

Assign Radiologist / Radiologist worklist
Yes

Yes

Yes

Yes

Re-Assign Radiologist
Yes
Yes

Yes

Yes

Assign Group
-

-

Yes

Yes

Report HTML, PDF (Example )
-

-

Yes

Yes

Webboard (Internal NEWS)
Yes

Yes

Yes

Yes

Teaching Files
-

-

Yes

Yes

Open PACS Link (DCM4CEE, OSIRIS, OHIF, etc)
-

-

Yes

Yes

Multi Site support
-

-

Yes

Yes

Auto Save Report
-

-

Yes

Yes

Copy Report(Duplicate)
-

-

Yes

Yes

Upload scaned file
Yes

Yes

Yes

Yes

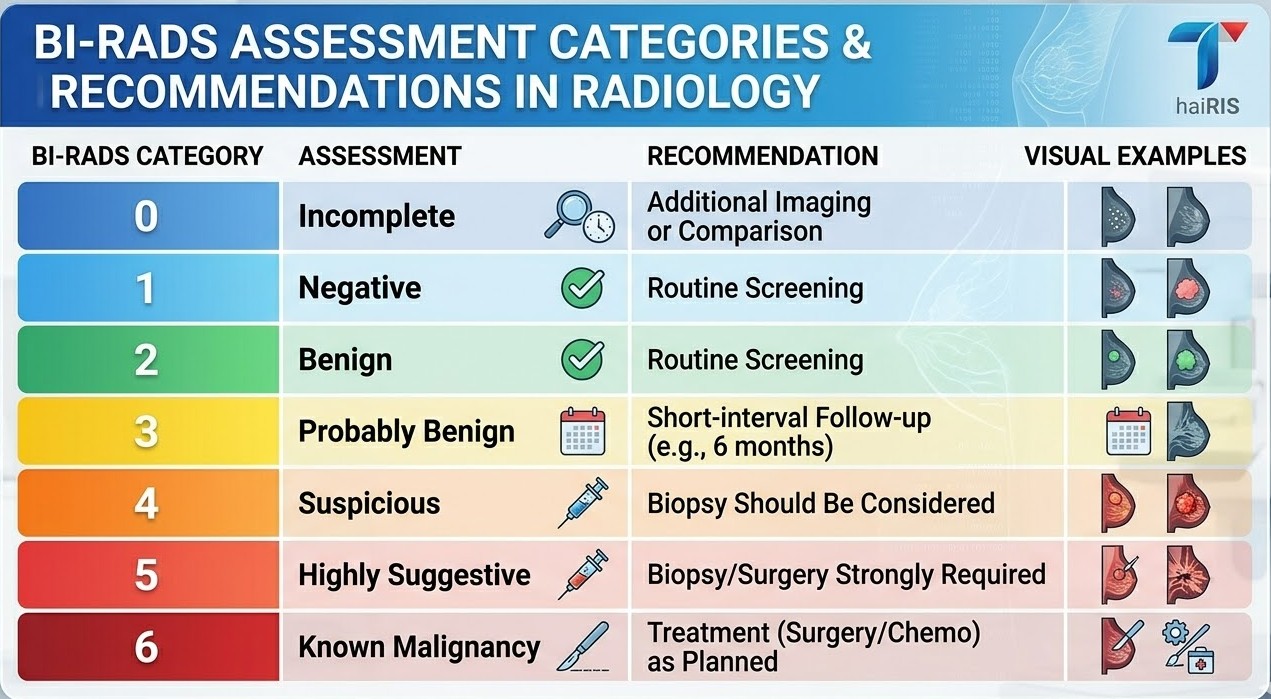

Mammography BIRAD Statistics
-

-

Yes

Yes

Mammography BIRAD Tracking
-

-

Yes

Yes

Mammography Digital Form
-

-

Yes

Yes

CD/Film usage recording
-

-

Yes

Yes

Scheduler
-

-

Soon

Soon

Add Key image to report (JPEG, PNG)
-

-

Yes

Yes

Multi Arrival
-

-

Yes

Yes

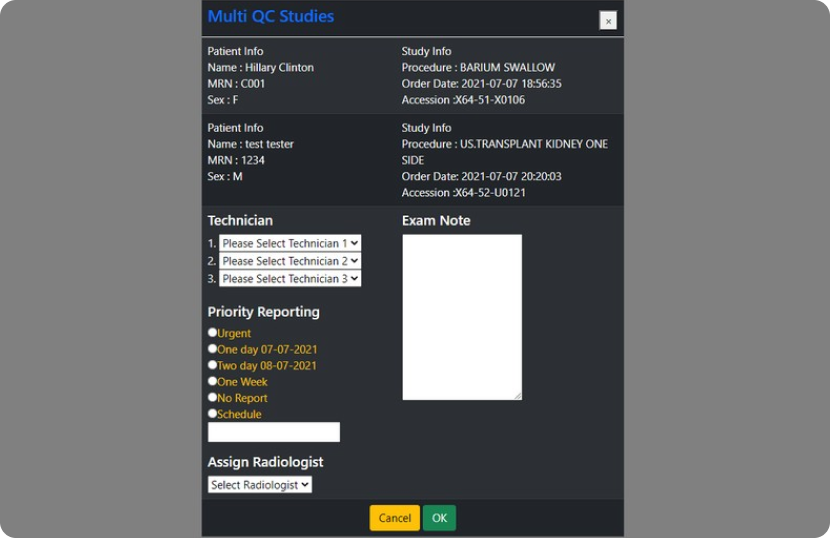

Multi QC
-

-

Yes

Yes

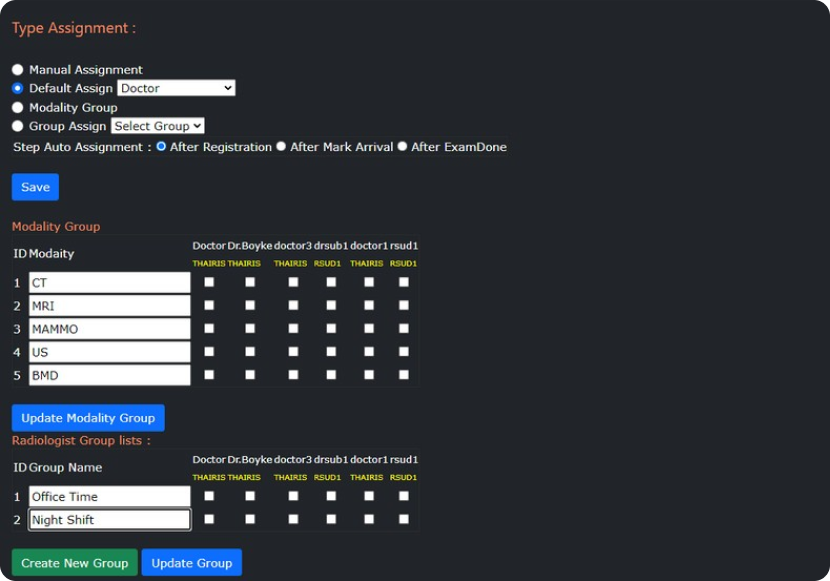

Radiologist Group Assigment
-

-

Yes

Yes

Support Transcriptionist Workflow
-

-

Yes

Yes

Use External PDF Report
-

-

Yes

Yes

HL7 ADT, ORM, ORU
-

-

-

Yes

PHP
PHP5

PHP7

PHP7,8

PHP7,8

Report

Turn arround time report
Yes

Yes

Yes

Yes

Radiologist Workload
Yes

Yes

Yes

Yes

Radiography Workload
Yes

Yes

Yes

Yes

Referrer Physician Workload
Yes

Yes

Yes

Yes

Department ordering Workload
Yes

Yes

Yes

Yes

Procedure statistics
Yes

Yes

Yes

Yes

Cancled procedure statistics
Yes

Yes

Yes

Yes

Export to excel
-

Yes

Yes

Yes

Export to PDF
-

Yes

Yes

Yes

Logging
-

Yes

Yes

Yes

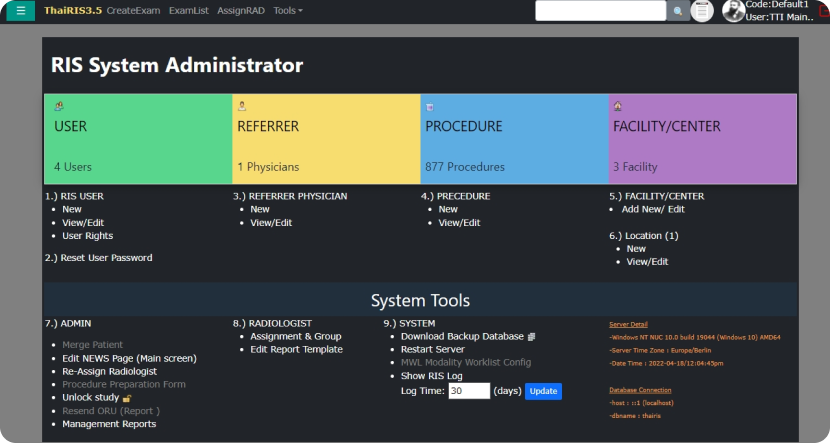

Administrator Tools

User management
Yes

Yes

Yes

Yes

Procedure management
Yes

Yes

Yes

Yes

Referrer physician, department management
Yes

Yes

Yes

Yes

Merge Patient
-

Yes

Yes

Yes

Procedure Preparation Form
-

Yes

Yes

Yes

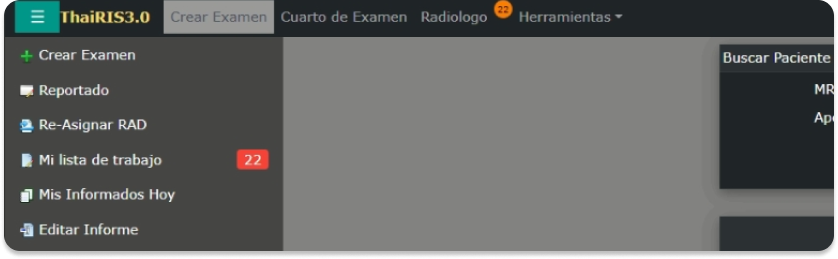

Change language(GUI)
-

-

-

Yes

Price
Free

Free

x00USD

x000USD

Feature

Free

Version 3.0 Source code + Service

Auto Print to Printer (External Software & License)
-
Option

HL7 Interface With Mirth Connect setup

Mirth Connect Interface ADT
-
YES

Mirth Connect Interface ORM
-
YES

Mirth Connect Interface ORU
-

YES

Mirth Connect Interface MPPS
-

YES

Integrate with DCM4CHE ,PACS, DMWL, WEASIS, OVIYAM
-
YES

Customize Report
-
YES

Data Migration (Import database)
-
YES

Installation + Mirgration + Interface (Remote Only)
-
YES

Customize Software + Workflow
-
YES

Extra coding Man day (New requirement) : 100USD

ThaiRIS Free version 1.0

9 Nov 2016 - 1.0 First Release to plubic 1. Standard workflow 2. Update admin tool (procedure, staff) 3. Encrypt user password 4. Fixed some worklist searching not working (Order, Examroom, Radiology worklist) 10 Jan 2017 - Fixed PDF report not create to folder after approved report from dictate worklist (added reportpdf folder) 15 Jan 2017 - Update database to 1.1 - Fix creation pdf report - Admin tool add/edit/delete, user, procedure, referrer, department 17 AUG 2018 - Add Search option in search menu - Add all Country on Registration 16 SEP 2018 - Fixed search filter on exam screen 20 SEP 2018 - Protect duplicate user-login from creation new user 21 SEP 2018 - Update Reset user password right 24 SEP 2018 - Fixe searching on Order worklist 16 JUL 2021 - No update For Free Version 1.0 - Plan move to Free Version 1.5 30 JUL 2021 - Move download source code to Github OpenSource Community - Plan ThaiRIS Free Version to 1.5 soon (Support PHP7) 13 MAR 2022 - Free Version move to 1.8

ThaiRIS Free Version 1.8

13 MAR 2022 - Prepare Free version 1.8

ThaiRIS Advance 1.5

17 AUG 2018 - Add Search option in search menu - Add all Country on Registration 1 SEP 2018 - Option for Edit/Change procedure code 16 SEP 2018 - Fixed search filter on exam screen 20 SEP 2018 - Fixed multi-site showing patient from other Center - Protect duplicate user-login from creation new user - Show differrence NEWS dashboard for each user 's Center - Report header related with user for muti-site 21 SEP 2018 - Update Reset user password right 24 SEP 2018 - Fixe searching on Order worklist 10 NOV 2018 - Changing GUI 01 JUN 2020 - No more feature update - Main develop point to version 2.0 16 JUL 2021 - No update For Version 1.5 - Move to Version 3.0

ThaiRIS Advance 1.8

19-May-2021 - Add User type Transcriptionist 21 APR 2021 - Integrate Viewer RadiAnt DICOM Viewer 16 JUL 2021 - No update For Version 1.8 - Move to Version 3.0

ThaiRIS Advance 2.0

01 OCT 2019 - Change GUI to dark mode 05 JUN 2020 - Developing API on MirthConnect (ADT) 04 JUL 2020 - Add option auto assign Radiologist for reporting 10 JUL 2021 - No update move to version 3.0

ThaiRIS3.0

30 MAY 2021 - Started Developing

7 JUL 2021 - Add multiple studies for QC/Assign in one time
16 JUL 2021 - Option Group Radiologsit Assigment
24 JUL 2021 - Update Admin Tools 11 AUG 2021 - Add Image Signature 20 SEP 2021 - Add option use external report PDF file 9 NOV 2021 - Interface with dcm4chee Archlight 5.x 25 NOV 2021 - Tested Interface with Meddream 1 JAN 2022 - Add 2FA (option) for security login 18 FEB 2022 - Remove .php file extention from url 19 FEB 2022 - Add default Physician and Location in Creation Exam change on admin tools 10 MAR 2022 - Multi language Support GUI/DB 14 MAR 2022 - Report JSON format supported 12 APR 2022 - Option Assign Rad on Creation Exam 6 JUN 2022 - Change PDF class from FPDF to TCPDF (Mort html support) 22 AUG 2022 - Change PDF class from TCPDF to mPDF (fixd some HTML Tag which cannot convert in TCPDF)

Comming soon, Mile stone.

- Interface with OHIF - Free version moving to PHP7
- etc,

info.xraythai@gmail.com

2022

Feature	Version 1.0	Version 1.8	Version 3.0 Source Code Only	Version 3.0 Source code + Service
Basic Workflow (Order, Exam ,Report)	Yes	Yes	Yes	Yes
Manual Registration	Yes	Yes	Yes	Yes
Edit Procedure	-	Yes	Yes	Yes
Template Report	Yes	Yes	Yes	Yes
Addendum Report	Yes	Yes	Yes	Yes
Edit Report	-	Yes	Yes	Yes
Preview Report	Yes	Yes	Yes	Yes
Assign Radiologist / Radiologist worklist	Yes	Yes	Yes	Yes
Re-Assign Radiologist	Yes	Yes	Yes	Yes
Assign Group	-	-	Yes	Yes
Report HTML, PDF (Example )	-	-	Yes	Yes
Webboard (Internal NEWS)	Yes	Yes	Yes	Yes
Teaching Files	-	-	Yes	Yes
Open PACS Link (DCM4CEE, OSIRIS, OHIF, etc)	-	-	Yes	Yes
Multi Site support	-	-	Yes	Yes
Auto Save Report	-	-	Yes	Yes
Copy Report(Duplicate)	-	-	Yes	Yes
Upload scaned file	Yes	Yes	Yes	Yes
Mammography BIRAD Statistics	-	-	Yes	Yes
Mammography BIRAD Tracking	-	-	Yes	Yes
Mammography Digital Form	-	-	Yes	Yes
CD/Film usage recording	-	-	Yes	Yes
Scheduler	-	-	Soon	Soon
Add Key image to report (JPEG, PNG)	-	-	Yes	Yes
Multi Arrival	-	-	Yes	Yes
Multi QC	-	-	Yes	Yes
Radiologist Group Assigment	-	-	Yes	Yes
Support Transcriptionist Workflow	-	-	Yes	Yes
Use External PDF Report	-	-	Yes	Yes
HL7 ADT, ORM, ORU	-	-	-	Yes
PHP	PHP5	PHP7	PHP7,8	PHP7,8
Report
Turn arround time report	Yes	Yes	Yes	Yes
Radiologist Workload	Yes	Yes	Yes	Yes
Radiography Workload	Yes	Yes	Yes	Yes
Referrer Physician Workload	Yes	Yes	Yes	Yes
Department ordering Workload	Yes	Yes	Yes	Yes
Procedure statistics	Yes	Yes	Yes	Yes
Cancled procedure statistics	Yes	Yes	Yes	Yes
Export to excel	-	Yes	Yes	Yes
Export to PDF	-	Yes	Yes	Yes
Logging	-	Yes	Yes	Yes
Administrator Tools
User management	Yes	Yes	Yes	Yes
Procedure management	Yes	Yes	Yes	Yes
Referrer physician, department management	Yes	Yes	Yes	Yes
Merge Patient	-	Yes	Yes	Yes
Procedure Preparation Form	-	Yes	Yes	Yes
Change language(GUI)	-	-	-	Yes
Price	Free	Free	x00USD	x000USD
